Netlist Loading Demonstration

Overview#

This document describes a demonstration for loading a circuit netlist into the HeteroSTA timing analysis environment. Two distinct APIs are presented:

1. heterosta_read_netlist: A high-level API for reading a Verilog netlist directly from a file. This is the recommended approach for standard static timing analysis (STA) workflows, such as post-synthesis timing verification or sign-off, where the netlist is the primary source of design information.

2. heterosta_set_netlistdb: A flexible, low-level API for advanced users integrating HeteroSTA into a larger toolchain. This method is essential for applications like placement and routing, where an in-memory database already exists. It provides fine-grained control over the internal indices of pins and cells, allowing for a direct and efficient mapping between the host application's data structures and the STA engine.

This guide details both APIs and provides instructions for building and running the included demonstration, which showcases their usage.

API Reference#

1. heterosta_read_netlist#

/**
 * Read a netlist verilog file at the specified path.
 *
 * Should be done after reading all liberty libraries.
 * If `top_module` is not NULL, will regard the provided module type
 * as the top module.
 * Returns whether the read has succeeded. false means failure.
 */
bool heterosta_read_netlist(struct STAHoldings *sta, const char *path, const char *top_module);

Description

Reads a Verilog netlist from the specified file path and populates the internal design database within the STAHoldings environment. This function must be called after all necessary Liberty library files have been loaded. The top_module parameter controls how the root of the design is determined. As an alternative, the netlist can be provided directly using heterosta_set_netlistdb.

Return Value

Returns true if the netlist file was read and processed successfully. Returns false on failure, which may occur if the file is not found, contains syntax errors, or if a specified top_module does not exist.

Arguments

• sta: A pointer to the STAHoldings environment that the netlist data will be loaded into.
• path: A null-terminated string containing the file path to the Verilog netlist file.
• top_module: A null-terminated string specifying the name of the top-level module. Pass NULL to enable automatic detection.

2. heterosta_set_netlistdb#

/**
 * Initialize the timer netlist database using an external
 * flattened database.
 *
 * You should transform your netlist into a `NetlistDB`
 * using APIs in `netlistdb.h`.
 */
void heterosta_set_netlistdb(struct STAHoldings *sta, struct NetlistDB *netlist_ptr);

Description

Provides an alternative to heterosta_read_netlist for populating the STAHoldings environment with netlist data. This function directly accepts a pointer to a NetlistDB object that you construct manually. It must be called after all necessary Liberty library files have been loaded.

To use this function, you must first parse the Verilog netlist into a custom data structure. From this data, you then populate a NetlistDBCppInterface struct and call the netlistdb_new() function to create the NetlistDB instance. The required definitions for these items can be found in netlistdb.h. A demo is provided that illustrates the use of this function alongside heterosta_read_netlist. This approach is recommended for advanced users who need fine-grained control over the netlist data structure.

Arguments

• sta: A pointer to the STAHoldings environment that the netlist data will be loaded into.
• netlist_ptr: A pointer to a previously created NetlistDB object.

Note on Pin Indexing

A key advantage of this method is control over pin indexing. The internal pin IDs within the STAHoldings environment will directly correspond to the indices you define when constructing the NetlistDBCppInterface. This avoids the need to remap pin indices when interfacing with other functions, such as heterosta_extract_rc_from_placement.

Running the Demonstration#

The provided demo implements the two methods in read_nelist_demo.cpp and set_netlistdb_demo.cpp respectively.

Code Structure#

The set_netlistdb_demo.cpp uses a simple, two-stage database approach to illustrate the workflow:

1. NormalPlaceDB: A basic, object-oriented database defined in placedb.h. A simple Verilog parser in placedb.cpp reads the .v file and populates this database.
2. FlatPlaceDB: A flattened, array-based representation of the netlist. Data is transferred from NormalPlaceDB into this structure, which is ideal for interfacing with the C API. It contains the build_netlistdb method that prepares the final NetlistDB object.

Building the Demo#

A Makefile is provided.

Using Makefile:

# Compile the code directly from the root directory
make

This method will create an executable named demo.

Executing the Demo#

• Run the read_nelist method:

  ./read_nelist_demo

• Run the set_netlistdb method:

  ./set_netlistdb_demo

• View the Database Mapping: To understand how the in-memory arrays map to the original design, run the set_netlistdb method with the --verbose or -v flag.

  ./set_netlistdb_demo --verbose

  This command prints a detailed, Markdown-formatted explanation of the data structures passed to the C-API, making it easy to see the relationship between array indices and the original pin/net/cell names.

Example Circuit: simple.v#

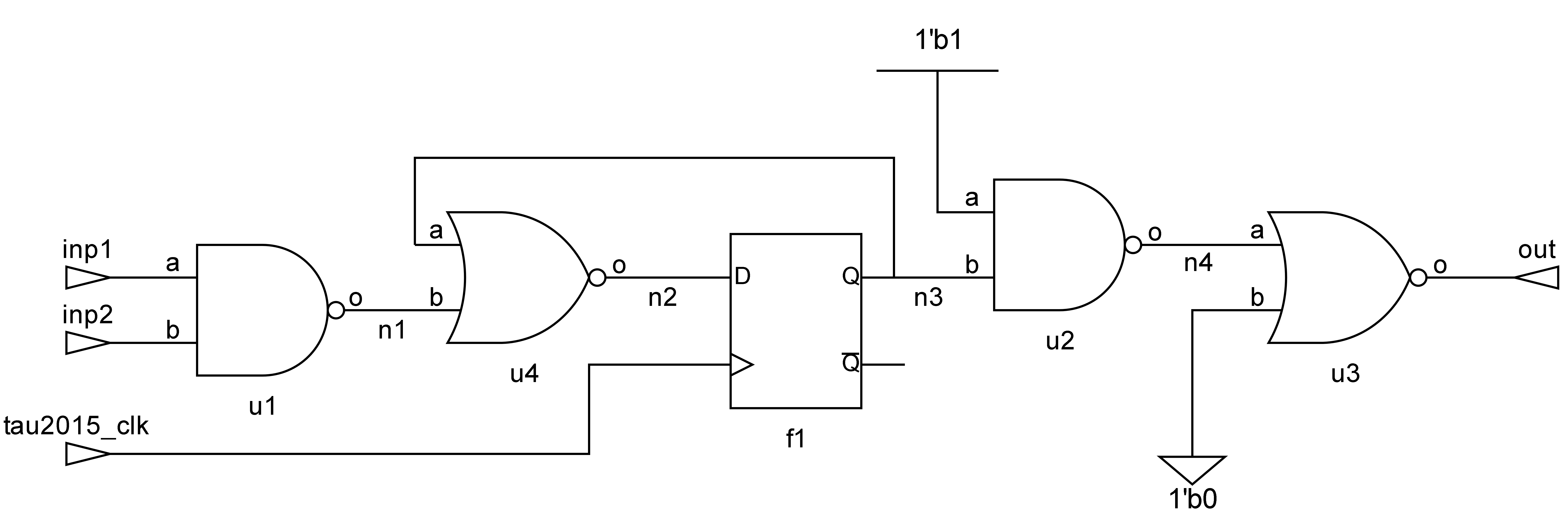

The demonstration uses the simple.v Verilog file as input. Its circuit structure is illustrated below. The --verbose output directly corresponds to this schematic, helping you trace how each component is represented in the data arrays.

Example --verbose Output#

Running the ./set_netlistdb_demo --verbose command will produce the following detailed output, which maps the internal data structures to the simple.v netlist:

NetlistDB Cpp Interface Data Mapping Explanation

This document explains the mapping from original database names to the integer indices used in the arrays passed to the NetlistDB C-style interface.

Summary of Database Content

• Top Design Name: simple
• Total Cells (Instances + Top): 6
• Total Pins (Instance Pins + Ports): 19
• Total Top-Level Ports: 4
• Total Nets: 10

1. Cell/Instance Arrays

The cellname_array and celltype_array map a cell index to its instance name and type. Note: Cell[0] is reserved for the top-level design module.

2. Net Array

The netname_array maps a net index to its original name in the design.

3. Pin and Connectivity Arrays

This table shows the comprehensive mapping for each pin, including its name, direction, owner cell, and connected net.

4. Special Net Arrays (Power/Ground)

These arrays list the indices of nets connected to constant power (1) or ground (0).

nets_one_array (Power Nets):

nets_zero_array (Ground Nets):
